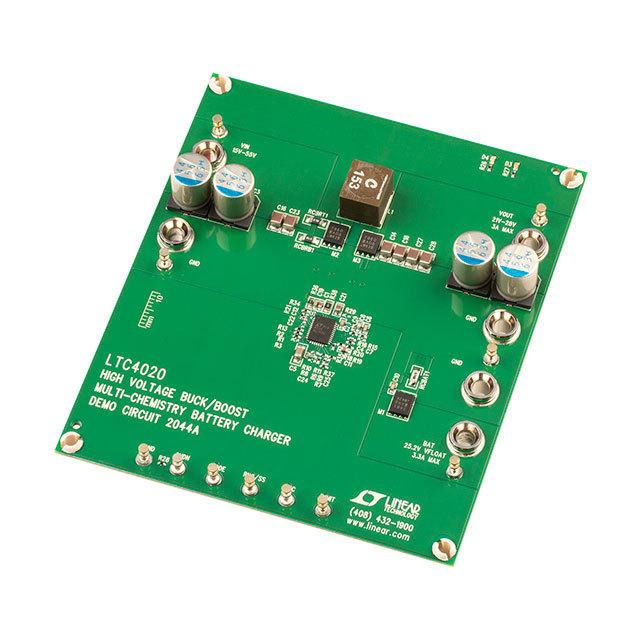

Image is for your reference only,please check specifications for details

DC2044A - Linear Technology
Manufacturer:
Linear Technology
ManyChip's Part#:
MC138630630
Category:
Microprocessor Development Kit
Datasheet:
Datasheet 3D Model
Description:
LTC4020EUHF Battery Management 21VDC to 28VDC Output Demonstration Circuit
Stock Locations:
Availability:
6 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 240.93

Updated at 09/06/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DC2044A is a Demonstration Circuit for LTC4020 battery charger. The demonstration circuit 2044A is a 55V buck-boost multi-chemistry battery charger featuring the LTC4020. The board will accept an input voltage between 15V and 55V. The float voltage of the battery output (BAT) is 25.2V, with 3.3A maximum charge current. The converter output (VOUT) has a voltage range of 21 to 28V, with 3A maximum load current. The LTC4020 contains a high efficiency synchronous buck-boost DC/DC controller and uses a proprietary average current mode architecture. The LTC4020 battery charger can provide a constant current/constant-voltage charge algorithm (CC/CV, with MODE pin grounded), constant-current charging (CC, with MODE pin floated) or charging with an optimized 4-step, 3-stage lead-acid battery charge profile (connect MODE pin to INTVCC, with a 0R jumper at the optional R29 position).

Show

DC2044A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Outputs	1 Output
Output Current	3000 mA
Input Voltage	15VDC ~ 55VDC
	Show
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
