Description
- DESCRIPTION
- The popular 1N5985 thru 1N6031 series of 0.5 watt Zener Voltage Regulators provides a selection from 2.4 to 200 volts in standard 5% or 10% tolerances as well as tighter tolerances identified by different suffix letters on the part number. These glass axial-leaded DO-35 Zeners are also available in various military screening levels by adding a prefix identifier as described in the Features section. Microsemi also offers numerous other Zener products to meet higher and lower power applications.
- FEATURES
- • JEDEC registered 1N5985 to 1N6031
- • Similar to operating current conditions of the BZX55 Pro Electron series of Zener products in Europe
- • Internal bonds optionally available with “-1” suffix
- • Options for screening in accordance with MIL-PRF-19500 for JAN, JANTX, JANTXV, and JANS are available by adding MQ, MX, MV, or MSP prefixes respectively to part numbers with “-1” suffix.
- • Surface mount equivalents available as MLL5985 to MLL6031 in the DO-213AA MELF style package including “-1” suffix options (consult factory for others)
- • DO-7 glass body axial-leaded Zener equivalents are also available
- APPLICATIONS / BENEFITS
- • Regulates voltage over a broad operating current and temperature range
- • Extensive selection from 2.4 to 200 V
- • Standard voltage tolerances are plus/minus 5% with B suffix, 10 % with A suffix identification
- • Tight tolerances available in plus or minus 2% or 1% with C or D suffix respectively
- • Flexible axial-lead mounting terminals
- • Nonsensitive to ESD (MIL-STD-750 Method 1020)
- • Minimal capacitance (see Figure 2)
- • Inherently radiation hard as described in Microsemi MicroNote 050

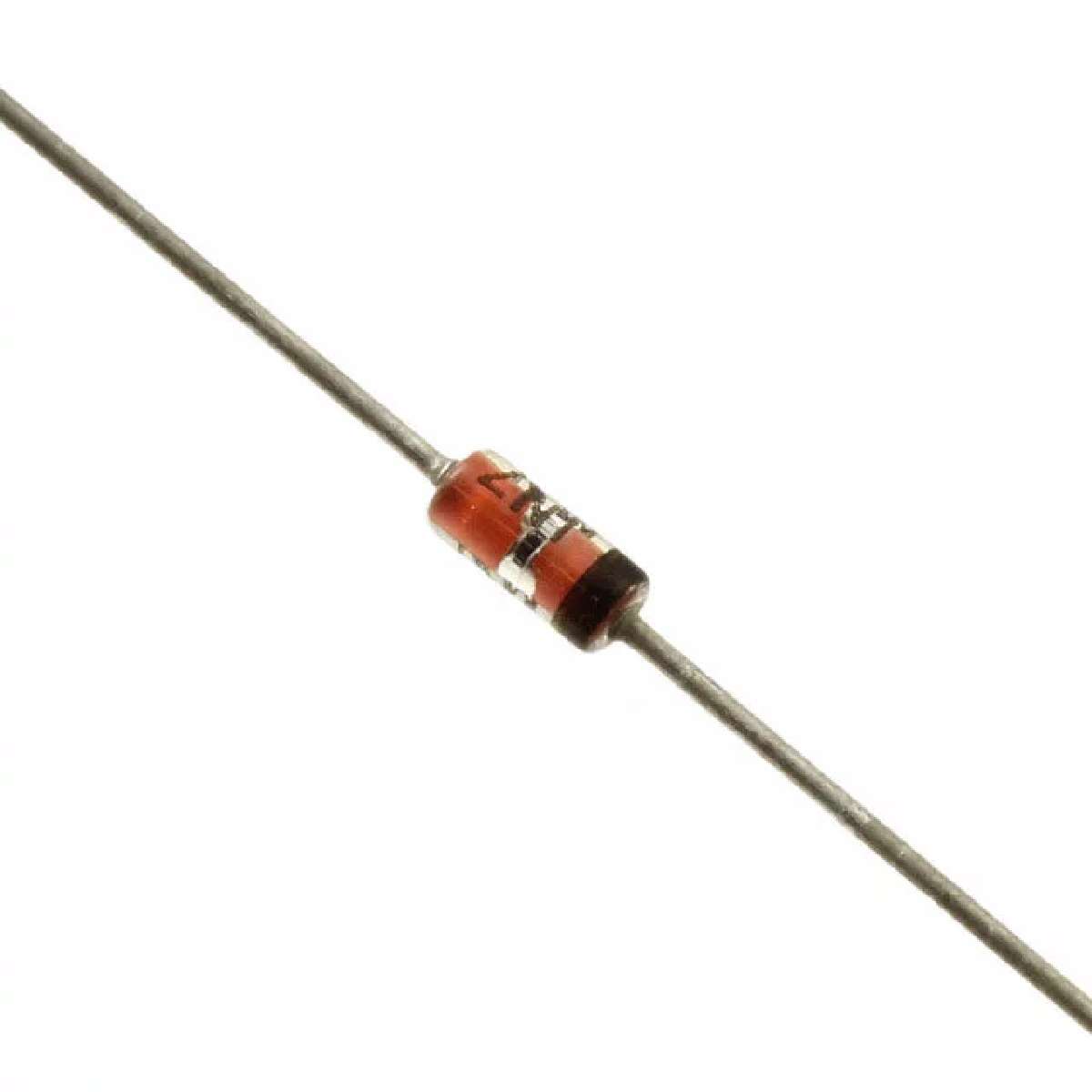

1N6005A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | DO-204AH |
| Capacitance Tolerance | ±10 % |
| Forward Voltage | 1.1V @200mA |
| Zener Voltage | 16 V |
| Maximum Forward Voltage (Max) | 1.1V @200mA |
| Input Power (Max) | 500 mW |
| Show | |
| Operating Temperature | -65℃ ~ 175℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | |
| Lead-Free Status |
