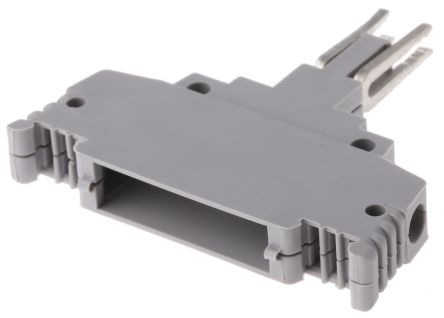

Image is for your reference only,please check specifications for details
- 2802316 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC40683861
-
Category:Terminal Block Accessory
-
Datasheet:Datasheet 3D Model
-
Description:For Connecting 2POS Components To Base Term Block Reverse Standoff Voltage Of 1300V 1A Max
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ST-SI-UK 4 fuse connectors for 5 × 20 mm cartridge fuse inserts are available with or without light indicators. The version with a light indicator includes light diodes connected back-to-back as well as preresistors for the three voltage levels up to 60 V and a glow lamp with preresistors for voltage levels above 110 V. The connector housing is folded back to the side to change the fuse.The component connector, ST-BE is available as a single connector for 2-position components. The component itself is inserted from above and reliably clamped.
2802316 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Plug In |
| Number of Contacts | 2 Contact |
| Gender | Male |
| Number of Positions | 2 Position |
| Current Rating (Max) | 10 A |
| Load Current (Max) | 16 A |
| Show | |
| Size-Length | 42 mm |
| Size-Height | 19 mm |
| Housing Color | Gray |
| Color | Gray |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536698000 |
| ECCN Code | EAR99 |
