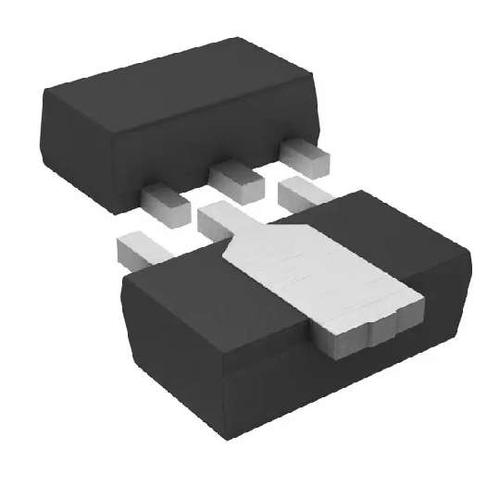

The 2SB1188T100Q is a -2A PNP medium-power epitaxial planar Silicon Transistor offers low collector to emitter saturation voltage.
2SD1766 Complement

Show

2SB1188T100Q Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-89
Voltage Rating (DC)	-32.0 V
Current Rating	-2.00 A
Power Rating	2 W
Number of Positions	3 Position
Polarity	PNP
Power Dissipation	500 mW
Breakdown Voltage (Collector to Emitter)	32 V
Continuous Collector Current	2A
hFE Min	120 @500mA, 3V
hFE Max	390
Input Power (Max)	2 W
DC Current Gain (hFE)	82
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2000 mW
	Show
Size-Length	4.50 mm
Size-Width	2.5 mm
Size-Height	1.50 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Not For New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
