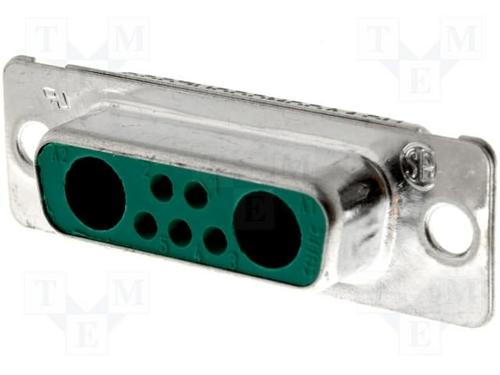

Image is for your reference only,please check specifications for details
- 3007W2SCM99A10X - Conec
-
Manufacturer:Conec
-
ManyChip's Part#:MC13042719
-
Category:D-Sub Connector, D-Sub Standard Connector, Connector D-Subminiature
-
Datasheet:Datasheet 3D Model
-
Description:Conn D-Subminiature SKT 5Signal/2Cavity POS Solder Cup ST Panel Mount 7 Terminal 1Port
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 7 (5 + 2 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
3007W2SCM99A10X Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Gender | Female |
| Wire Gauge | 20.0 AWG |
| Contact Plating | Gold |
| Number of Rows | 2 Row |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 7 Position |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating (Max) | 250 V |
| Voltage Rating | 250 V |
| Operating Voltage (Max) | 250 V |
| Show | |
| Size-Length | 39.52 mm |
| Size-Width | 12.45 mm |
| Size-Height | 12.93 mm |
| Housing Color | Green |
| Color | Green |
| Contact Material | Copper Alloy |
| Operating Temperature | -55℃ ~ 125℃ |
| Housing Material | Plastic |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
