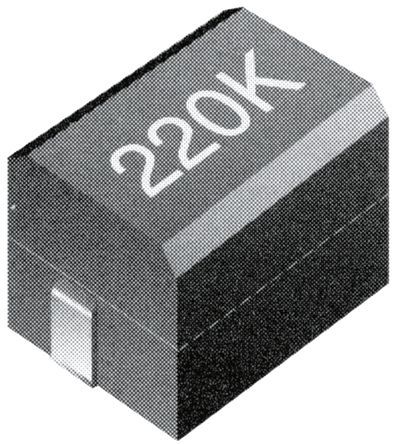

Image is for your reference only,please check specifications for details
- 3613C1R0K - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC19448740
-
Category:Inductor Surface Mount
-
Package:1812
-
Datasheet:Datasheet 3D Model
-
Description:Inductor Chip Molded/Unshielded Wirewound 1uH 10% 7.96MHz 50Q-Factor Ferrite 450mA 500mOhm DCR 1812 T/R
-
Stock Locations:
-
Availability:1,188 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.6
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Inductor Chip Molded/Unshielded Wirewound 1uH 10% 7.96MHz 50Q-Factor Ferrite 450mA 500mOhm DCR 1812 T/R
3613C1R0K Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 4532 |
| Case/Package | 1812 |
| Current Rating | 450 mA |
| Capacitance Tolerance | ±10 % |
| Inductance | 1 µH |
| Self Resonant Frequency | 100 MHz |
| Q-Factor | 50.0 |
| Resistance | 500 mΩ |
| Resonant Frequency | 100 MHz |
| Shielding | No |
| Inductance Tolerance | ±10 % |
| Test Frequency | 7.96 MHz |
| DC Resistance (DCR) | ≤500 mΩ |
| Current Rating (DC) | 450 mA |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Resistance (DC Max) | 0.5 Ω |
| Show | |
| Size-Length | 4.5 mm |
| Size-Width | 3.2 mm |
| Size-Height | 3.2 mm |
| Operating Temperature | -30℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8504508000 |
| ECCN Code | EAR99 |
