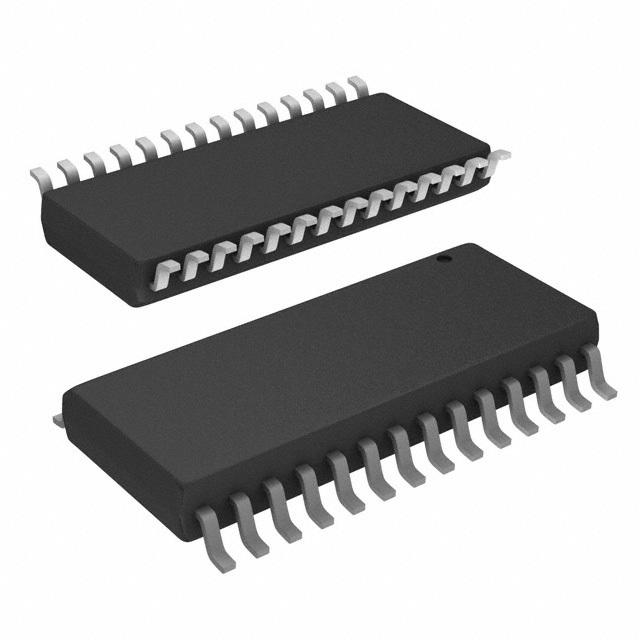

- AD1674BR - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC37019593
-
Category:Analog to Digital, ADC IC
-
Package:SOIC-28
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD1674BR Analog to Digital Converter, 12Bit, 100KSPS, Single, 11.4V, 16.5V, SOIC
-
Stock Locations:
-
Availability:11 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 38.55
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD1674 is a complete, multipurpose, 12-bit analog-to-digital converter, consisting of a user-transparent on-board sample-and-hold amplifier (SHA), 10 volt reference, clock and three-state output buffers for microprocessor interface.
- The AD1674 is pin compatible with the industry standard AD574A and AD674A, but includes a sampling fuction while delivering a faster conversion rate. The on-chip SHA has a wide input bandwidth supporting 12-bit accuracy over the full Nyquist bandwidth of the converter.
- The AD1674 is fully specified for ac parameters (such as S/(N+D) ratio, THD, and IMD) and dc parameters (offset, full-scale error, etc.). With both ac and dc specifications, the AD1674 is ideal for use in signal processing and traditional dc measurement applications.
- The AD1674 design is implemented using Analog Devices" BiMOS II process allowing high performance bipolar analog circuitry to be combined on the same die with digital CMOS logic.
- Five different temperature grades are available. The AD1674J and K grades are specified for operation over the 0°C to +70°C temperature range. The A and B grades are specified from -40°C to +85°C; the AD1674T grade is specified from -55°C to +125°C. The J and K grades are available in both 28-lead plastic DIP and SOIC. The A and B grade devices are available in 28-lead hermetically sealed ceramic DIP and 28-lead SOIC. The T grade is available in 28-lead hermetically sealed ceramic DIP.
- ### Features and Benefits
- Complete Monolithic 12-Bit 10 µs Sampling ADC
- On-Board Sample-and-Hold Amplifier
- Industry Standard Pinout
- 8- and 16-Bit Microprocessor Interface
- AC and DC Specified and Tested
- Unipolar and Bipolar Inputs
- ±5 V, ±10 V, 0 V–10 V, 0 V–20 V Input Ranges
- Commercial, Industrial and Military Temperature Range Grades
- MIL-STD-883 and SMD Compliant Versions Available
AD1674BR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | SOIC-28 |
| Digital Logic Level | SAR |
| Supply Voltage (DC) | 11.4V (min) |
| Supply Current | 10.0 mA |
| Number of Channels | 1 Channel |
| Number of Bits | 12 Bit |
| Power Dissipation | 575 mW |
| Sample Rate | 100 ksps |
| Power Consumption | 385 mW |
| Resolution (Bits) | 12.0 Bit |
| Input Impedance | 10.0 kΩ |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 575 mW |
| Number of Input Channels | 1 Channel |
| Supply Voltage (Max) | 16.5 V |
| Supply Voltage (Min) | 11.4 V |
| Show | |
| Size-Length | 18.1 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | Yes |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
