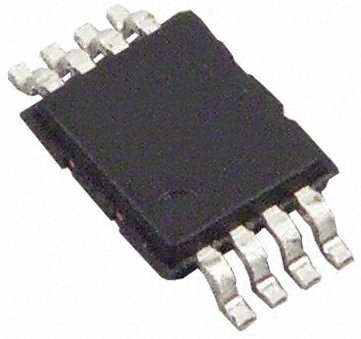

AD5310BRMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC157942
Category:
Digital to Analog, DAC IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD5310BRMZ Digital to Analog Converter, 10Bit, 167KSPS, Serial, 2.7V to 5.5V, SOP, 8Pins
Stock Locations:
Availability:
299 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.43

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD5310BRMZ is a single 10-bit buffered voltage output Digital-to-analog Converter (DAC) operates from a single 2.7 to 5.5V supply, consuming 115µA at 3V. Its on-chip precision output amplifier allows rail-to-rail output swing. The AD5310 utilizes a versatile 3-wire serial interface that operates at clock rates of up to 30MHz and is compatible with standard SPI™, QSPI™, MICROWIRE® and DSP interface standards. It is derived from the power supply inputs and therefore, provides the widest dynamic output range. The part incorporates a power-on reset circuit that ensures that the DAC output powers up to 0V and remains there until a valid write takes place to the device. The part contains a power-down feature, which reduces the current consumption of the device to 200nA at 5V and provides software-selectable output loads while in power-down mode. The part is put into power-down mode over the serial interface.
Guaranteed monotonic by design
Reference derived from power supply
Three power-down functions
Low power serial interface with Schmitt triggered inputs
On-chip output buffer amplifier, rail-to-rail operation
SYNC interrupt facility

Show

AD5310BRMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Voltage (DC)	5.50V (max)
Operating Voltage	2.7V ~ 5.5V
Number of Outputs	1 Output
Supply Current	140 µA
Number of Channels	1 Channel
Number of Positions	8 Position
Number of Bits	10 Bit
Power Dissipation	1.25 mW
Sample Rate	167 ksps
Resolution (Bits)	10.0 Bit
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1.25 mW
Number of DACs	1 DAC
Supply Voltage	2.7V ~ 5.5V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
