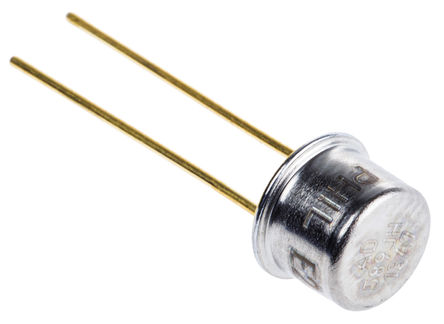

Image is for your reference only,please check specifications for details

AD589JH - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC534837
Category:
Voltage Reference
Package:
TO-51-2
Datasheet:
Datasheet 3D Model
Description:
IC, Voltage Reference; TO-51; 5mA (Max.); 100ppm/ degC; 0.125W(1/8W); 0 degC; deg
Stock Locations:
Availability:
222 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 13.32

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The AD589 is a two-terminal, low cost, temperature compensated bandgap voltage reference which provides a fixed 1.23 V output voltage for input currents between 50 µA and 5.0 mA.
The high stability of the AD589 is primarily dependent upon the matching and thermal tracking of the on-chip components. Analog Devices" precision bipolar processing and thin-film technology combine to provide excelent performance at low cost.
Additionally, the active circuit produces an output impedance ten times lower than typical low-TC Zener diodes. This feature allows operation with no external components required to maintain full accuracy under changing load conditions.
The AD589 is available in seven versions. The AD589J, K, L and M grades are specified for 0°C to +70°C operation, while the S, T, and U grades are rated for the full -55°C to +125°C temperature range. All grades are available in a metal can (H-02A) package. The AD589J is also available in an 8-pin SOIC package.
### Features and Benefits
Superior Replacement for Other 1.2 V References
Wide Operating Range: 50 µA to 5 mA
Low Power: 60 µW Total PD at 50 µA
Low Temperature Coefficient:
10 ppm/°C Max, 0°C to 70/°C (AD589M)
2-Terminal Zener Operation
Low Output Impedance: 0.6 Ω
No Frequency Compensation Required
Low Cost
MIL-STD-883 Compliant Versions Available

Show

AD589JH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-51-2
Output Voltage	1.235 V
Output Current	5 mA
Supply Current	50.0 µA
Number of Channels	1 Channel
Number of Positions	2 Position
Power Dissipation	125 mW
Output Voltage (Max)	1.25 V
Output Voltage (Min)	1.235 V
Output Current (Max)	5 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Accuracy	1.2 %
	Show
Size-Length	7 mm
Size-Width	7 mm
Size-Height	1 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Temperature Coefficient	±100 ppm/℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
