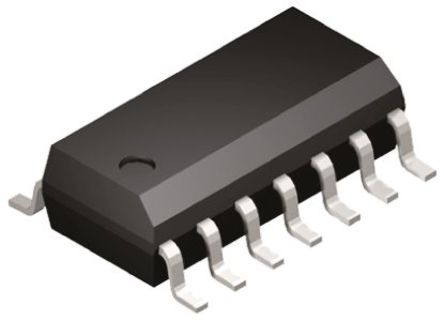

AD8522ARZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC751126
Category:
Digital to Analog, DAC IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8522ARZ Digital to Analog Converter, 12Bit, 62.5KSPS, Serial, 4.5V to 5.5V, SOIC, 14Pins
Stock Locations:
Availability:
302 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 500.78

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8522ARZ is a complete dual 12-bit single-supply voltage output Digital-to-analog Converter (DAC) fabricated in a CBCMOS process. It features include a serial digital interface, on board reference and buffered voltage output. Ideal for 5V-only systems, this monolithic device offers ease of use and requires no external components to realize the full performance of the device. The serial digital interface allows interfacing directly to numerous microcontroller ports with a simple high speed, 3-wire data, clock and load strobe format. The 16-bit serial word contains the 12-bit data word and DAC select address, which is decoded internally or can be decoded externally using LDA, LDB inputs. A serial data output allows the user to easily daisy-chain multiple devices in conjunction with a chip select input. A reset RS input sets the outputs to zero scale or midscale, as determined by the input MSB.
No external components
Buffered voltage outputs
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

AD8522ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	5.00V (max)
Number of Outputs	2 Output
Supply Current	3.00 mA
Number of Channels	2 Channel
Number of Bits	12 Bit
Power Dissipation	25 mW
Sample Rate	62.5 ksps
Resolution (Bits)	12.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	25 mW
Number of DACs	2 DAC
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
