ADG5404FBRUZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC790654
Category:
Multiplexer IC
Package:
TSSOP-14
Datasheet:
Datasheet 3D Model
Description:
Circuit IC Switch 4:1 11.5Ω 14-TSSOP Analog Multiplexer Single 4:1 14Pin TSSOP T/R
Stock Locations:
Availability:
252 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.12

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The ADG5404F is an analog multiplexer composed of four single channels with fault protected inputs. The ADG5404F switches one of the four inputs to a common drain, D, as determined by the 2-bit binary address lines (A0 and A1). An enable digital input, EN, is used to disable all the switches. Each channel conducts equally well in both directions when on, and each switch has an input signal range that extends to the supplies. The digital inputs are compatible with 3 V logic inputs over the full operating supply range.
When no power supplies are present, the switch remains in the off condition, and the channel inputs are high impedance. Under normal operating conditions, if the analog input signal levels on any Sx pin exceed VDD or VSS by a threshold voltage, VT, the channel turns off and that Sx pin becomes high impedance. If the channel is on, the drain pin reacts according to the drain response (DR) input pin. If the DR pin is left floating or pulled high, the drain remains high impedance and floats. If the DR pin is pulled low, the drain pulls to the exceeded rail. Input signal levels up to +55 V or −55 V relative to ground are blocked, in both the powered and unpowered conditions.
The low on resistance of the ADG5404F, combined with on-resistance flatness over a significant portion of the signal range, makes it an ideal solution for data acquisition and gain switching applications where excellent linearity and low distortion are critical.

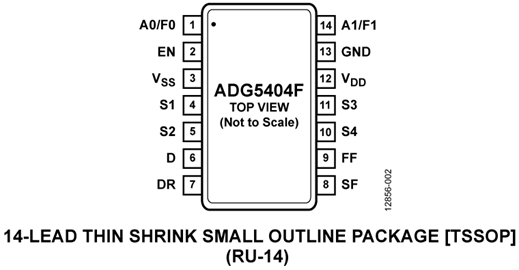

Note that, throughout this data sheet, the dual function pin names are referenced only by the relevant function where applicable. See the Pin Configuration and Function Descriptions for full pin names and function descriptions.
Product Highlights
1. Source pins are protected against voltages greater than the supply rails, up to −55 V and +55 V.
2. Source pins are protected against voltages between −55 V and +55 V in an unpowered state.
3. Overvoltage detection with digital output indicates operating state of switches.
4. Trench isolation guards against latch-up.
5. Optimized for low on resistance and on-resistance flatness.
6. The ADG5404F can be operated from a dual supply of ±5 V up to ±22 V or a single power supply of 8 V up to 44 V.
Applications
Analog input/output modules
Process control/distributed control systems
Data acquisition
Instrumentation
Avionics
Automatic test equipment
Communication systems
Relay replacement
### Features and Benefits
Overvoltage protection up to −55 V and +55 V
Power-off protection up to −55 V and +55 V
Overvoltage detection on source pins
Interrupt flags indicate fault status
Low on resistance: 10 Ω (typical)
On-resistance flatness of 0.5 Ω (maximum)
4 kV human body model (HBM) ESD rating
Latch-up immune under any circumstance
Known state without digital inputs present
VSS to VDD analog signal range
±5 V to ±22 V dual supply operation
8 V to 44 V single-supply operation
Fully specified at ±15 V, ±20 V, 12 V, and 36 V

Show

ADG5404FBRUZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Number of Outputs	1 Output
Supply Current	900 μA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	14 Position
Bandwidth	108 MHz
Number of Inputs	4 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	110 MHz
	Show
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
