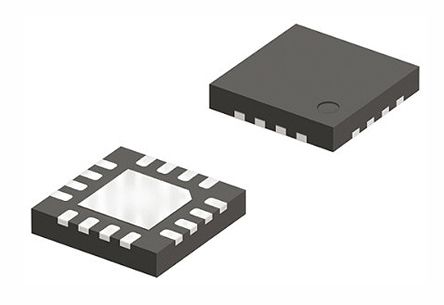

Image is for your reference only,please check specifications for details
- ADS7924IRTET - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC6332800
-
Category:Analog to Digital, ADC IC
-
Package:WQFN-16
-
Datasheet:Datasheet 3D Model
-
Description:12Bit, 4CH MUX input SAR ADC with Intelligent System Power Control 16-WQFN -40℃ to 85℃
-
Stock Locations:
-
Availability:2,374 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.52
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ADS7924IRTET is a 4-channel 12-bit Analog-to-digital Converter (ADC) with an I²C™ interface. With its low-power ADC core, support for low-supply operation and a flexible measurement sequencer that essentially eliminates power consumption between conversions, the ADC forms a complete monitoring system for power-critical applications such as battery-powered equipment and energy harvesting systems. The ADC features dedicated data registers and on board programmable digital threshold comparators for each input. Alarm conditions can be programmed that generate an interrupt. The combination of data buffering, programmable threshold comparisons and alarm interrupts minimize the host microcontroller time needed to supervise the ADC. The 4-channel input multiplexer (MUX) is routed through external pins to allow a common signal conditioning circuit to be used between the MUX and ADC thereby reducing overall component count. An on board oscillator eliminates the need to supply a master
- Intelligent monitoring
- Individual alarm thresholds for each channel
- Programmable scan rate
- MicroPOWER™ Monitoring
- Programmable interrupt pin controls shutdown/wakeup of the microcontroller
- Auto power-down control
- PWRCON pin allows shutdown of external operational amplifiers
- Green product and no Sb/Br
ADS7924IRTET Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | WQFN-16 |
| Supply Voltage (DC) | 2.20V (min) |
| Supply Current | 5.00 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 16 Position |
| Number of Bits | 12 Bit |
| Sample Rate | 100 ksps |
| Power Consumption | 500 µW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Input Channels | 4 Channel |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.2 V |
| Input Voltage | 5 V |
| Show | |
| Size-Length | 3.15 mm |
| Size-Width | 3.15 mm |
| Size-Height | 0.8 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
