Description

The ADUM3223BRZ is an Isolated Precision Half-bridge Driver that employs iCoupler® technology to provide independent and isolated high-side and low-side outputs. Combining high speed CMOS and monolithic transformer technology, this isolation component provides outstanding performance characteristics superior to the alternatives, such as the combination of pulse transformers and gate drivers. The isolator provides two independent isolated channels. In comparison to gate drivers employing high voltage level translation methodologies, it offers the benefit of true, galvanic isolation between the input and each output. Each output may be continuously operated up to 537V peak relative to the input, thereby supporting low-side switching to negative voltages. The ADUM3223 provides reliable control over the switching characteristics of IGBT/MOSFET configurations over a wide range of positive or negative switching voltages.
4A Peak output current
800V Peak high-side to low-side differential voltage
High frequency operation (1MHz maximum)
4.5 to 18V Output drive
54ns Maximum isolator and driver propagation delay
5ns Maximum channel-to-channel matching
High common-mode transient immunity (>25kV/µs)
Enhanced system-level ESD performance
High junction temperature operation
Thermal shutdown protection
Default low output
ESD sensitive device, take proper precaution while handling the device.

Show

ADUM3223BRZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount

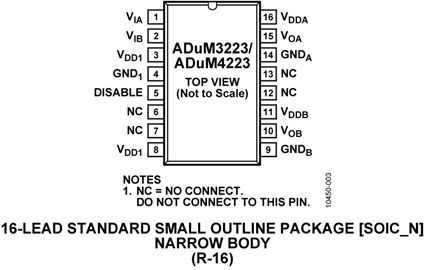

Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	5.50V (max)
Rise/Fall Time	12 ns
Number of Outputs	2 Output
Supply Current	1.40 A
Number of Channels	2 Channel
Number of Positions	16 Position
Isolation Voltage	3000 Vrms
Fall Time (Max)	22 ns
Fall Time (Max)	22 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2013/06/20
ECCN Code	EAR99
