- ADUM4160BRWZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC69758
-
Category:Interface Isolator, Digital Isolator
-
Package:SOIC-16
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES ADUM4160BRWZ Digital Isolator, 4Channel, 60ns, 3.1V, 5.5V, SOIC, 16Pins
-
Stock Locations:
-
Availability:156 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 11.71
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ADUM4160BRWZ is a full/low speed 5KV USB digital isolator in 16 pin WSOIC package. This USB port isolator is based on Analog Devices iCoupler technology. Combining high speed CMOS and monolithic air core transformer technology, this isolation component provides outstanding performance characteristics and are easily integrated with low and full speed USB compatible peripheral devices. The ADuM4160 uses edge detection based iCoupler technology in conjunction with internal logic to implement transparent, easily configured, upstream facing port isolator. Isolating an upstream facing port provides several advantages in simplicity, power management and robust operation. The isolator has propagation delay comparable to that of standard hub and cable.
- Maximum full speed data rate of 12Mbps
- Maximum full speed propagation delay of 70ns
- Maximum full speed jitter of 3ns
- 4.5V to 5.5V Vbus operation
- Bidirectional communication
- High common mode transient immunity of greater than 25KV/µs
- UL 1577, CSA and VDE approved
- USB 2.0 compatible
- Supply voltage range from 3.1V to 5.5V
- Operating temperature range from -40°C to 105°C
- ESD (electrostatic discharge) sensitive device. Proper ESD precautions are recommended to avoid performance degradation or loss of functionality.

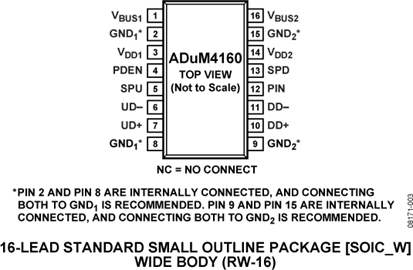

ADUM4160BRWZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Supply Voltage (DC) | 3.10V (min) |
| Rise/Fall Time | 20ns (Max) |
| Supply Current | 6.00 mA |
| Number of Channels | 2 Channel |
| Number of Positions | 16 Position |
| Rise Time | 20 ns |
| Isolation Voltage | 5000 Vrms |
| Input Current (Min) | 1 μA |
| Maximum Forward Voltage (Max) | 5.5 V |
| Fall Time (Max) | 300 ns |
| Fall Time (Max) | 300 ns |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3.1V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 3.1 V |
| Show | |
| Size-Length | 10.5 mm |
| Size-Width | 7.6 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | ECL99 |
