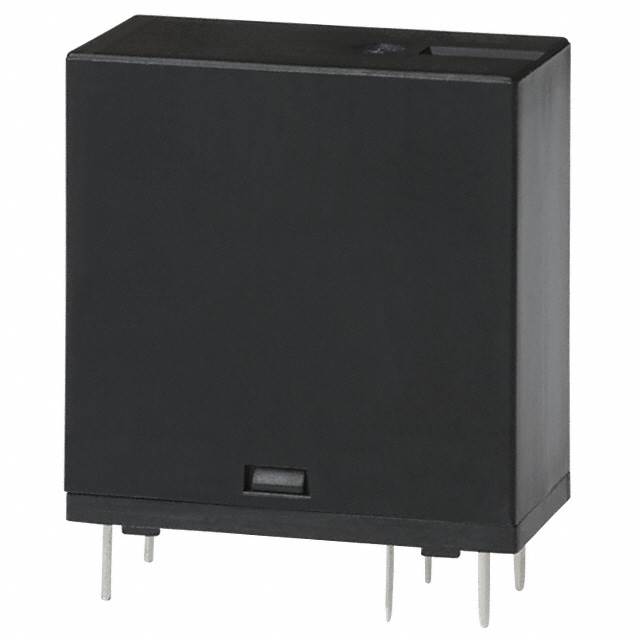

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **ALA Series**
- These TV-4 rated relays from Panasonic are designed to withstand inrush current and have a high insulation resistance. Typical applications include audio devices, monitors and automatic vending machines.
ALA2PF24 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | DIP |
| Insulation Resistance | 1000 MΩ |
| Contacts Type | DPST-NO |
| Power Consumption | 530 mW |
| Contact Current Rating | 5 A |
| Coil Voltage | 24 VDC |
| Coil Current | 22.1 mA |
| Coil Resistance | 1.09 kΩ |
| Coil Voltage (DC) | 24 V |
| Coil Power | 530 mW |
| Switching Current (Max) | 5 A |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 24 mm |
| Size-Width | 12 mm |
| Size-Height | 25 mm |
| Contact Material | Silver Tin Oxide |
| Operating Temperature | -40℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536490050 |
| ECCN Code | EAR99 |
