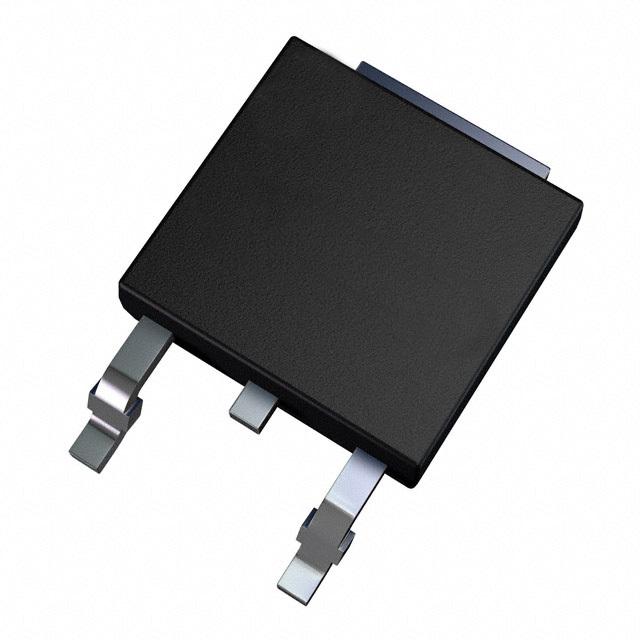

N-Channel 20V 18A (Ta), 45A (Tc) 2.5W (Ta), 100W (Tc) Surface Mount TO-252, (D-Pak)

Show

AOD424 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Polarity	N-CH
Power Dissipation	100 W
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	45A
Rise Time	8 ns
Input Capacitance (Ciss)	4630pF @10V(Vds)
Input Power (Max)	2.5 W
Fall Time	18 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5W (Ta), 100W (Tc)
	Show
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
