Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Screw |
Number of Pins | 4 Pin |

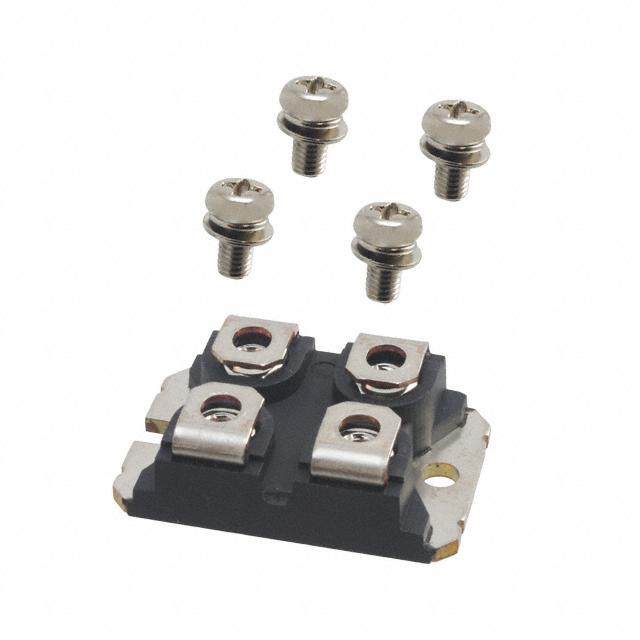

Case/Package | SOT-227-4 |
Voltage Rating (DC) | 500 V |
Current Rating | 88.0 A |
Power Dissipation | 694 W |
Input Capacitance | 12.0 nF |
Gate Charge | 270 nC |
Drain to Source Voltage (Vds) | 500 V |
Continuous Drain Current (Ids) | 88.0 A |
Rise Time | 22 ns |
Input Capacitance (Ciss) | 12000pF @25V(Vds) |
Fall Time | 4 ns |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 694W (Tc) |
Show | |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
