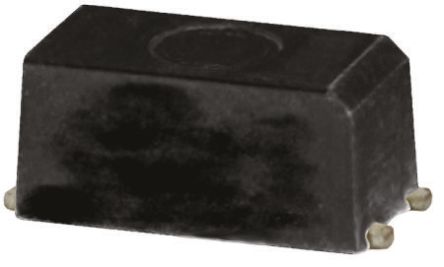

Image is for your reference only,please check specifications for details
- AQY221N3V - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC14922866
-
Category:Solid State Relay
-
Package:SSOP-4
-
Datasheet:Datasheet 3D Model
-
Description:AQY Photomos Series 0.15A 25V 7.5Ω SMT 1Channel Solid State Relay - SSOP-4
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Built-In Input Resistor for Less Man-Hours
- * The Voltage-Sensitive Type Eliminates the Need to Mount an External Input Resistor, Which Cuts Man-Hours for Mounting and Simplifies Board Designing
- * Space Saving on PC Board
- * The Small Package Size Including a Built-In Resistor Helps Space Savings When Designing Miniature Devices
AQY221N3V Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SSOP-4 |
| Capacitance | 1.5 pF |
| Output Voltage | 0V ~ 25V |
| Output Current | 150 mA |
| Contacts Type | SPST-NO |
| Load Current | 150 mA |
| Input Current | 5 mA |
| Isolation Voltage | 1.5 kV |
| Coil Voltage | 5.00V (max) |
| Forward Current | 1 mA |
| Input Voltage (Max) | 1.5 V |
| Output Voltage (Max) | 25 V |
| Output Current (Max) | 0.15 A |
| Input Current (Min) | 50 mA |
| Load Current (Max) | 150 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 1.5 V |
| Show | |
| Size-Length | 2.65 mm |
| Size-Width | 2.65 mm |
| Size-Height | 1.8 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
