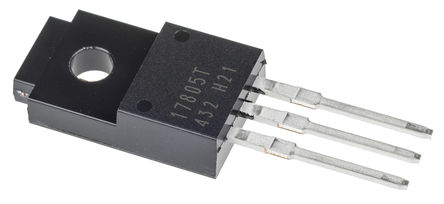

Image is for your reference only,please check specifications for details
- BA17805T - ROHM Semiconductor
-
Manufacturer:ROHM Semiconductor
-
ManyChip's Part#:MC27060342
-
Category:Voltage Regulator
-
Package:TO-220-3
-
Datasheet:Datasheet 3D Model
-
Description:ROHM BA17805T Linear Voltage Regulator, 7805, Fixed, 7.5V To 25V In, 5V And 1A Out, TO-220FP-3
-
Stock Locations:
-
Availability:232 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.38
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BA17805T is a 3-terminal surface-mount fixed output Linear Regulator with the stable 5V from unstable direct input voltage. It has nearly same electric characteristics as competitor products and covers a wide range of application.
- Built-in over-current protection circuit and thermal shutdown circuit
- High ripple rejection
- Compatible replacement to competitor products
BA17805T Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Supply Voltage (DC) | 25.0 V |
| Power Rating | 2 W |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 25.0V (max) |
| Output Voltage | 5 V |
| Output Current | 1 A |
| Number of Positions | 3 Position |
| Power Dissipation | 22000 mW |
| voltage rating | 2V @1A |
| Input Voltage (Max) | 25 V |
| Input Voltage (Min) | 7.5 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 22000 mW |
| Number of Output Channels | 1 Channel |
| Input Voltage | 7.5V ~ 25V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 4.5 mm |
| Size-Height | 8 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
