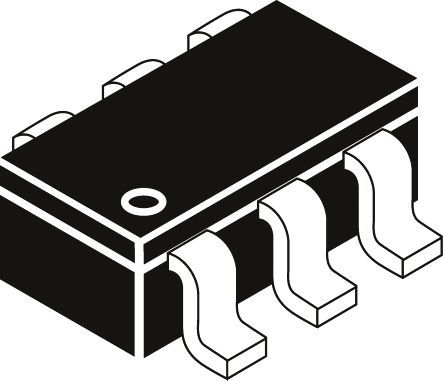

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Silicon Switching Diode For high-speed switching ApplicAtions High breAkdown VoltAge

Show

BAS21U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-74
Max Forward Surge Current (Ifsm)	4 A
Maximum Forward Voltage (Max)	1.25 V
Forward Current (Max)	625 mA
Operating Temperature (Max)	150 ℃
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	0.95 mm
Product Lifecycle Status	End of Life
RoHS	RoHS Compliant
