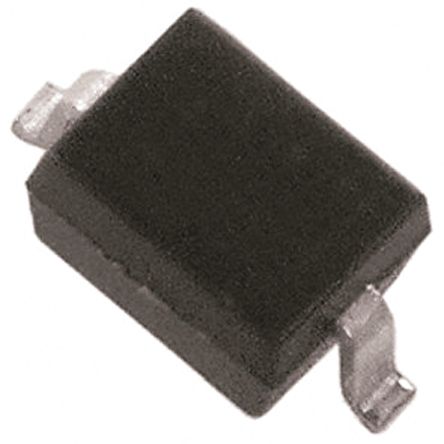

BAT165E6327HTSA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC757146
Category:
Schottky Diode
Package:
SOD-323-2
Datasheet:
Datasheet 3D Model
Description:
BAT165 Series 40V 2.5A SMT Medium Power AF Schottky Diode - SOD-323
Stock Locations:
Availability:
291 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.06

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAT165 from Infineon is surface mounted medium power AF schottky diode. These diodes are single configured, applicable at for low-loss, fast recovery, meter protection, bias isolation and clamping applications.
Automotive grade AEC-Q101 qualified
Non repetitive peak surge forward surge current is 2.5A
Power dissipation is 600mW
Operating Junction temperature of 150°C
Forward voltage of 0.74V at IF 750mA
Available in SOD323 case style

Show

BAT165E6327HTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323-2
Voltage Rating (DC)	40.0 V
Current Rating	750 mA
Output Current	≤750 mA
Breakdown Voltage	40.0 V
Number of Positions	2 Position
Forward Voltage	740mV @750mA
Polarity	Standard
Power Dissipation	600 mW
Forward Current	500 mA
Max Forward Surge Current (Ifsm)	2.5 A
Maximum Forward Voltage (Max)	700 mV
Forward Current (Max)	750 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
Power Dissipation (Max)	600 mW
	Show
Size-Length	1.25 mm
Size-Width	1.7 mm
Size-Height	0.9 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
