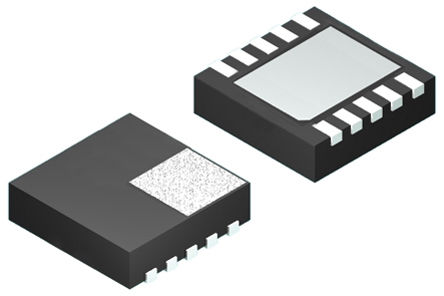

Image is for your reference only,please check specifications for details

BQ25071DQCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC19632651
Category:
Battery Management IC
Package:
WFDFN-10
Datasheet:
Datasheet 3D Model
Description:
1A, Single-Input, Single-Cell LiFePO4 Linear Battery Charger with 50mA LDO 10-WSON -40℃ to 85℃
Stock Locations:
Availability:
269 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.33

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BQ25071DQCT is a highly integrated linear LiFePO4 Battery Charger targeted at space-limited portable applications. It accepts power from either an USB port or AC adapter and charges a single-cell LiFePO4 battery with up to 1A of charge current. The 30V input rating with 10.5V input overvoltage protection supports low-cost unregulated adapters. It has a single power output that simultaneously charges the battery and powers the system. The input current is programmable from 100mA up to 1A using the ISET input or configurable for USB500. There is also a 4.9V ±10% 50mA LDO integrated into the IC for supplying low power external circuitry. The LiFePO4 charging algorithm removes the current taper typically seen as part of the constant voltage mode control used in Li-ion battery charge cycles which reduces charge time significantly. Instead, the battery is fast charged to the overcharge voltage and then allowed to relax to a lower float charge voltage threshold.
Single cell LiFePO4 charging algorithm
Programmable charge current through ISET and EN terminals
7% Charge current regulation accuracy
Thermal regulation and protection
Soft-start feature to reduce inrush current
Battery NTC monitoring
Charging status indication
Green product and no Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

BQ25071DQCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	WFDFN-10
Input Voltage (DC)	28.0 V
Output Current	1000 mA
Number of Positions	10 Position
Output Voltage (Max)	5.1 V
Output Voltage (Min)	4.7 V
Output Current (Max)	1 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	28 V
	Show
Size-Length	3.1 mm
Size-Width	2.1 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
