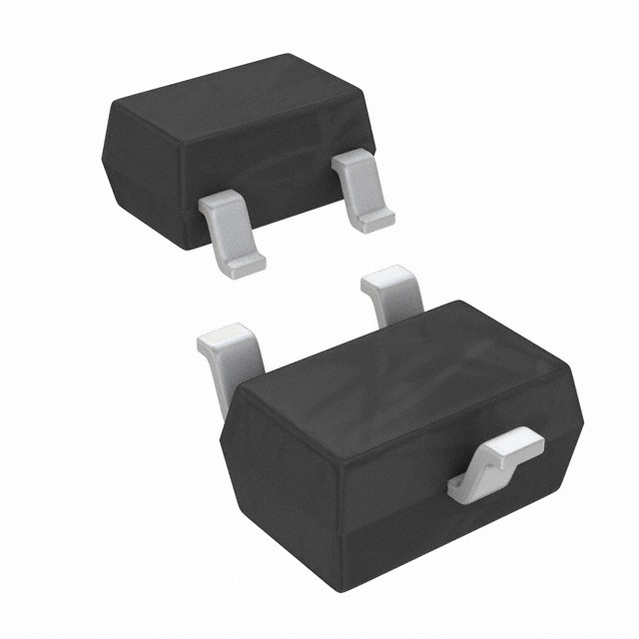

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Features
- · P-Channel
- · Enhancement mode
- · Avalanche rated
- · Logic Level
- · dv/dt rated
BSS84PW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-323-3 |
| Voltage Rating (DC) | -60.0 V |
| Current Rating | -150 mA |
| Number of Channels | 1 Channel |
| Polarity | P-CH |
| Power Dissipation | 300mW (Ta) |
| Input Capacitance | 19.1 pF |
| Gate Charge | 1.50 nC |
| Drain to Source Voltage (Vds) | 60 V |
| Continuous Drain Current (Ids) | 150 mA |
| Rise Time | 16.2 ns |
| Input Capacitance (Ciss) | 19.1pF @25V(Vds) |
| Fall Time | 20.5 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 300mW (Ta) |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
