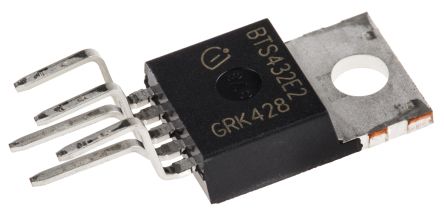

BTS432E2BKSA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC24915514
Category:
Power Distribution
Package:
TO-220
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 1Out 9A 0.03Ω Automotive 5Pin(5+Tab) TO-220AB Tube
Stock Locations:
Availability:
249 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.53

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTS432E2 is a high side Power Switch with integrated vertical power FET, providing embedded protection and diagnostic functions.
Load Dump and Reverse Battery Protection
Clamp of Negative Voltage at Output
Short-circuit Protection
Current Limitation
Thermal Shutdown
Diagnostic Feedback
Open Load Detection in ON-state
CMOS Compatible Input
Electrostatic Discharge (ESD) Protection
Loss of Ground and Loss of Vbb Protection
Overvoltage Protection
Under-voltage and Overvoltage Shutdown with Auto-restart and Hysteresis
High Load Current Capability
High Inrush Current Capability
Very High Energy Capability
Capable for 24V Applications
Integrated Protection Functionality
Integrated Diagnosis Functionality
