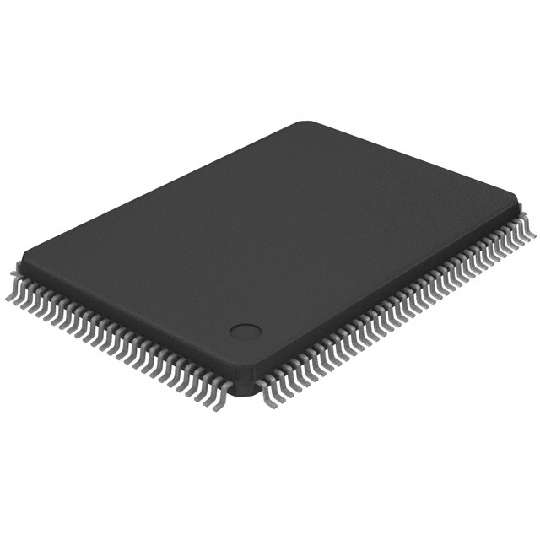

C8051F060 - Silicon Labs
Manufacturer:
Silicon Labs
ManyChip's Part#:
MC35224206
Category:
Microcontroller, MCU IC
Package:
TQFP-100
Datasheet:
Datasheet 3D Model
Description:
25MIPS, 64KB Flash, 16Bit ADC, 100Pin Mixed-Signal MCU
Stock Locations:
Availability:
294 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 21.07

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

System Overview
The C8051F06x family of devices are fully integrated mixed-signal System-on-a-Chip MCUs with 59 digital I/O pins (C8051F060/2/4/6) or 24 digital I/O pins (C8051F061/3/5/7), and two integrated 16-bit 1 Msps ADCs. Highlighted features are listed below; refer to Table 1.1 for specific product feature selection.
• High-Speed pipelined 8051-compatible CIP-51 microcontroller core (up to 25 MIPS)
• Two 16-bit 1 Msps ADCs with a Direct Memory Access controller
• Controller Area Network (CAN 2.0B) Controller with 32 message objects, each with its own indentifier mask (C8051F060/1/2/3)
• In-system, full-speed, non-intrusive debug interface on-chip
• 10-bit 200 ksps ADC with PGA and 8-channel analog multiplexer (C8051F060/1/2/3)
• Two 12-bit DACs with programmable update scheduling (C8051F060/1/2/3)
• 64 kB (C8051F060/1/2/3/4/5) or 32 kB (C8051F066/7) of in-system programmable Flash memory
• 4352 (4096 + 256) bytes of on-chip RAM
• External Data Memory Interface with 64 kB direct address space (C8051F060/2/4/6)
• SPI, SMBus/I2C, and (2) UART serial interfaces implemented in hardware
• Five general purpose 16-bit Timers
• Programmable Counter/Timer Array with six capture/compare modules
• On-chip Watchdog Timer, VDD Monitor, and Temperature Sensor
Analog Peripherals
\- Two 16-Bit SAR ADCs
• 16-bit resolution
• ±0.75 LSB INL, guaranteed no missing codes
• Programmable throughput up to 1 Msps
• Operate as two single-ended or one differential con verter
• Direct memory access; data stored in RAM without software overhead
• Data-dependent windowed interrupt generator
\- 10-bit SAR ADC (C8051F060/1/2/3)
• Programmable throughput up to 200 ksps
• 8 external inputs, single-ended or differential
• Built-in temperature sensor
\- Two 12-bit DACs (C8051F060/1/2/3)
• Can synchronize outputs to timers for jitter-free wave form generation
\- Three Analog Comparators
• Programmable hysteresis/response time
\- Voltage Reference
\- Precision VDD Monitor/Brown-Out Detector
On-Chip JTAG Debug & Boundary Scan
\- On-chip debug circuitry facilitates full-speed, nonintrusive in-circuit/in-system debugging
\- Provides breakpoints, single-stepping, watchpoints, stack monitor; inspect/modify memory and registers
\- Superior performance to emulation systems using ICE-chips, target pods, and sockets
\- IEEE1149.1 compliant boundary scan
\- Complete development kit
High Speed 8051 µC Core
\- Pipelined instruction architecture; executes 70% of instruction set in 1 or 2 system clocks
\- Up to 25 MIPS throughput with 25 MHz clock
\- Flexible Interrupt sources
Memory
\- 4352 Bytes internal data RAM (4 k + 256)
\- 64 kB (C8051F060/1/2/3/4/5), 32 kB (C8051F066/7) Flash; In-system programmable in 512-byte sectors
\- External 64 kB data memory interface with multiplexed and non-multiplexed modes (C8051F060/2/4/6)
Digital Peripherals
\- 59 general purpose I/O pins (C8051F060/2/4/6)
\- 24 general purpose I/O pins (C8051F061/3/5/7)
\- Bosch Controller Area Network (CAN 2.0B - C8051F060/1/2/3)
\- Hardware SMBus™ (I2C™ Compatible), SPI™, and two UART serial ports available concurrently
\- Programmable 16-bit counter/timer array with 6 capture/compare modules
\- 5 general purpose 16-bit counter/timers
\- Dedicated watchdog timer; bi-directional reset pin
Clock Sources
\- Internal calibrated precision oscillator: 24.5 MHz
\- External oscillator: Crystal, RC, C, or clock
Supply Voltage .......................... 2.7 to 3.6 V
\- Multiple power saving sleep and shutdown modes
100-Pin and 64-Pin TQFP Packages Available Temperature Range: -40 to +85 °C

Show

C8051F060 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	TQFP-100
Supply Voltage (DC)	3.30 V, 3.60 V (max)
Operating Voltage	2.7V ~ 3.6V
Number of Channels	6 Channel
Clock Speed	25.0MHz (max)
RAM Memory Size	4.25K x 8
FLASH Memory Size	64000 B
Number of I/O Pins	59 IO
Access Time	25.0 µs
Core Architecture	8051
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	40 ℃
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	14 mm
Size-Width	14 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Obsolete
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Order guide

Payment Shipping Package Order Quality Assurance

TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
