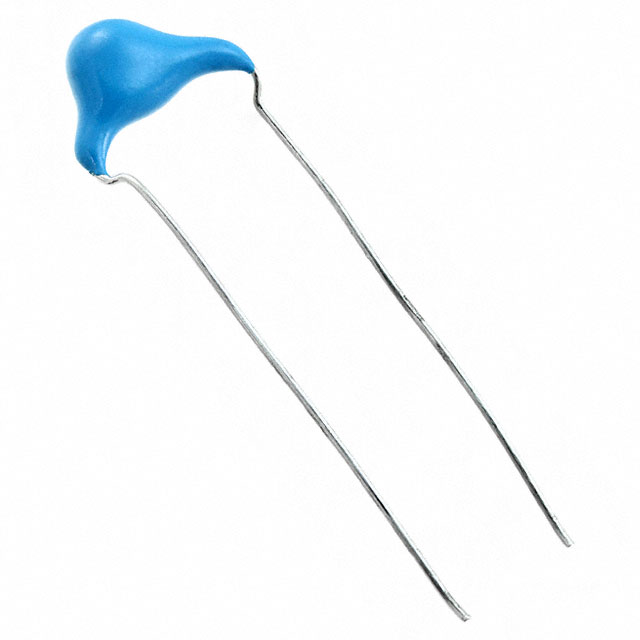

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The low-cost ceramic disc DE1E3KX102MN4AP01F high frequency capacitor is the ideal device for ensuring safe voltages within your circuit. It can withstand a voltage of 300 VAC. This high frequency capacitor has a maximum operating temperature of 125 °C. This part has a lead diameter of 0.6 mm and a pitch of 10 mm. Its capacitance value is 0.001uF. The DE1E3KX102MN4AP01F high frequency capacitor has a radial termination style. It has a tolerance of 20%. This product is 7(Max) mm deep.
DE1E3KX102MN4AP01F Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | Radial, Disc |
| Pin Pitch | 10 mm |
| Voltage Rating (DC) | 300 V |
| Voltage Rating (AC) | 250V, 300V |
| Capacitance | 0.001 µF |
| Capacitance Tolerance | ±20 % |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±20 % |
| Voltage Rating | 300 VAC |
| Show | |
| Size-Length | 7 mm |
| Size-Width | 7 mm |
| Size-Height | 7.0 mm |
| Size-Diameter | Φ7.0mm |
| Size-Thickness | 7 mm |
| Material | E |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
