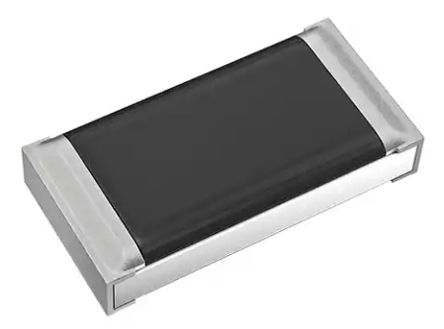

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The Panasonic ERJ 2R series resistors are automotive grade precision thick film chip resistors. The resistance range includes E24 and E96 decade values from 10 ohm to 2.2Mohm. ERJ series resistors have metal glaze thick film resistive element and three layers of electrodes that make them highly reliable.
- EIA 01005, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512 case sizes available
- Small size, low weight resistors
- Automotive grade AEC-Q200 compliant
- Maximum power rating of 1W
- Available in ±0.5% and ±1% tolerance
- Temperature coefficient (TCR) of ±50, ±100, ±200 and ±300ppm/°C
- Available in -55°C to 125°C and -55°C to 155°C operating temperature ranges
- Meets IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B standards
- Suitable for both reflow and flow soldering
ERJ2RKF1022X Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 1005 |
| Case/Package | 0402 |
| Voltage Rating (DC) | 50.0 V |
| Capacitance Tolerance | ±1 % |
| Power Rating | 100 mW |
| Part Family | ERJ2R |
| Resistance | 10.2 kΩ |
| Resistance Tolerance | ±1 % |
| Operating Temperature (Max) | 155 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating | 50 V |
| Show | |
| Size-Length | 1 mm |
| Size-Width | 500 µm |
| Size-Height | 0.35 mm |
| Temperature Coefficient | ±100 ppm/℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Cut Tape (CT) |
| Minimum Packing Quantity | 10000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
