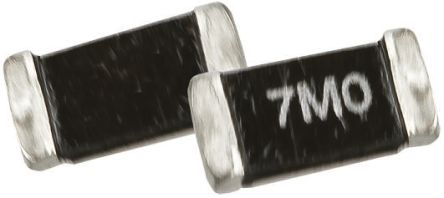

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Low Resistance Values and High Precision( 1 Milliohm to 20 Milliohms )
- * Stable Resistance Not Influenced By Measurement Position
- * High Heat Emission
- * Low Profile, Strong Body
- * Inductance Less than 1.0 nH for the Metal Plate Structure
ERJM1WSF5M0U Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 6432 |
| Case/Package | 2512 |
| Capacitance Tolerance | ±1 % |
| Power Rating | 1 W |
| Part Family | ERJM1WS |
| Resistance | 0.005 Ω |
| Resistance Tolerance | ±1 % |
| Operating Temperature (Max) | 170 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Length | 6.3 mm |
| Size-Width | 3.20 mm |
| Size-Height | 0.6 mm |
| Operating Temperature | -55℃ ~ 170℃ |
| Temperature Coefficient | ±100 ppm/℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Cut Tape (CT) |
| Minimum Packing Quantity | 40000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
