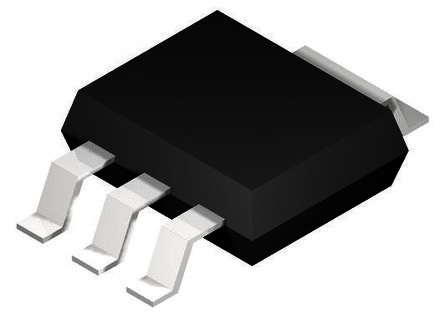

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

FDT86256 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-223
Number of Positions	4 Position
Drain to Source Resistance (on) (Rds)	0.695 Ω
Power Dissipation	10 W
Threshold Voltage	3.5 V
Drain to Source Voltage (Vds)	150 V
Rise Time	1.7 ns
Input Capacitance (Ciss)	55pF @75V(Vds)
Fall Time	2.6 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	10 W
	Show
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.7 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
