Description

Transistors with built-in resistors can be excellent space- and cost-saving solutions by reducing component count and simplifying circuit design.
Features
---
|
100 mA Output Current Capability

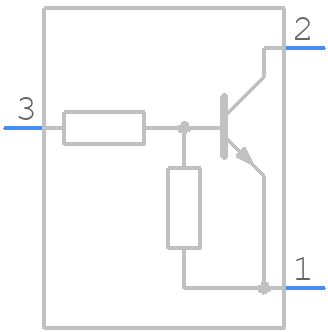

Built-in Bias Resistor (R1=10KΩ, R2=10KΩ)

Show

FJN3302RTA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Power Dissipation	0.3 W
Breakdown Voltage (Collector to Emitter)	50 V
hFE Min	30
Input Power (Max)	300 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Gain Bandwidth	250 MHz
Power Dissipation (Max)	200 mW
	Show
Size-Length	1.7 mm
Size-Width	0.98 mm
Size-Height	0.78 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
