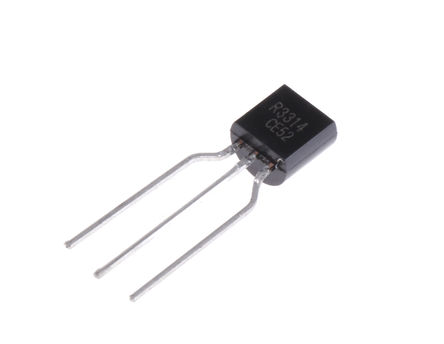

Image is for your reference only,please check specifications for details
Updated at 23/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Pre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased 50V 100mA 200MHz 300mW Through Hole TO-92-3
FJN4301RTA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-226-3 |
| Voltage Rating (DC) | -50.0 V |
| Current Rating | -100 mA |
| Polarity | PNP |
| Power Dissipation | 0.3 W |
| Breakdown Voltage (Collector to Emitter) | 50 V |
| Continuous Collector Current | 100mA |
| hFE Min | 20 @10mA, 5V |
| Input Power (Max) | 300 mW |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 300 mW |
| Show | |
| Size-Length | 5.2 mm |
| Size-Width | 4.19 mm |
| Size-Height | 5.33 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
