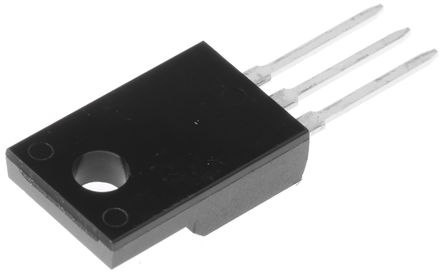

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

FQPF15P12 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	-120 V
Current Rating	-15.0 A
Drain to Source Resistance (on) (Rds)	200 mΩ
Polarity	P-Channel
Power Dissipation	41 W
Drain to Source Voltage (Vds)	120 V
Breakdown Voltage (Gate to Source)	±30.0 V
Continuous Drain Current (Ids)	15.0 A
Rise Time	100 ns
Input Capacitance (Ciss)	1100pF @25V(Vds)
Input Power (Max)	41 W
Fall Time	80 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	41W (Tc)
	Show
Size-Length	10.36 mm
Size-Width	4.9 mm
Size-Height	16.07 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Rail, Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
