Description

Product Details

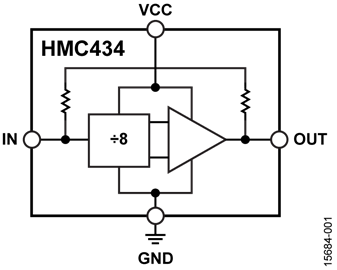

The HMC434 is a low noise, static, divide by 8 prescaler monolithic microwave integrated circuit (MMIC) utilizing indium gallium phosphide/gallium arsenide (InGaP/GaAs) heterojunction bipolar transistor (HBT) technology in an ultrasmall surface-mount 6-lead SOT-23 package.
The HMC434 operates from near dc (square wave) or 200 MHz (sine wave) to 8 GHz input frequency with a single 3 V dc supply.
The HMC434 features single-ended inputs and outputs for reduced component count and cost. The low additive single sideband (SSB) phase noise of −150 dBc/Hz at 100 kHz offset helps the user maintain optimal system noise performance.
**Applications**
DC to C band PLL prescalers
Very small aperture terminal (VSAT) radios
Unlicensed national information infrastructure (UNII) and point to point radios
IEEE 802.11a and high performance radio local area network (HiperLAN) WLAN
Fiber optics
Cellular/3G infrastructure
### Features and Benefits
Ultralow SSB phase noise: −150 dBc/Hz typical
Single-ended input/outputs
Output power: −2 dBm typical
Single supply operation: 3 V
Ultrasmall, surface-mount, 2.90 mm × 2.80 mm, 6-lead SOT-23 package
**HMC434-EP supports defense and aerospace applications (AQEC standard)**
Download the HMC434-EP data sheet (pdf)
Military temperature range (−55°C to +105°C)
Controlled manufacturing baseline
One assembly/test site
One fabrication site
Enhanced product change notification
Qualification data available on request
V62/16609 DSCC Drawing Number
