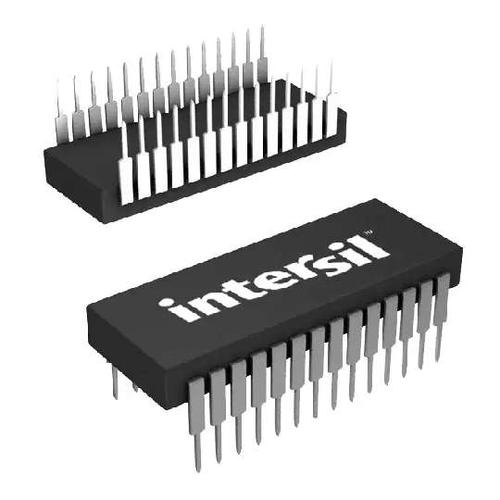

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ICM7218AIJI is a 8-digit LED microprocessor-compatible Multiplexed Display Decoder Driver. The ICM7218 series of universal LED driver systems provide, all the circuitry necessary to interface most common microprocessors or digital systems to an LED display. Included on chip are an 8-byte static display memory, two types of 7-segment decoders, multiplex scan circuitry and high current digit and segment drivers for either common-cathode or common-anode displays. The lCM7218A feature two control lines (WRITE and MODE) which write either 4 bits of control information (DATA COMING, SHUTDOWN, DECODE and HEXA/CODE B) or 8 bits of display input data. Display data is automatically sequenced into the 8-byte internal memory on successive positive going WRITE pulses. Data may be displayed either directly or decoded in hexadecimal or code B formats.
Microprocessor compatible
Output drive suitable for LED displays directly
Common anode and common cathode versions
Single 5V supply required
Data retention to 2V supply
Shutdown feature - Turns off display and puts chip into low power dissipation mode
Sequential and random access versions
Decimal point drive on each digit
ESD sensitive device, take proper precaution while handling the device.

Show

ICM7218AIJI Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	CDIP-28
Supply Voltage (DC)	5.50V (max)
Number of Outputs	2 Output
Input Voltage (DC)	4.00V ~ 6.00V
Output Current	0.5 mA
Supply Current	2.5 mA
Number of Positions	28 Position
Input Voltage (Max)	5 V
Input Voltage (Min)	0 V
Output Voltage (Max)	2.5 V
Output Current (Max)	30 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4V ~ 6V
	Show
Size-Length	37.85 mm
Size-Width	15.49 mm
Size-Height	4.4 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
