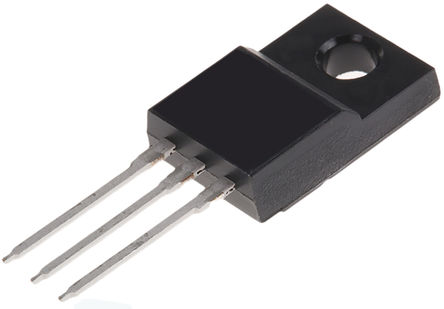

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description:
CoolMOS™ C6 combines Infineon"s experience as the leading superjunction MOSFET supplier with best-in-class innovation. The C6 devices provide all benefits of a fast switching SJ MOSFET while not sacrificing ease of use. Extremely low switching and conduction losses make switching applications even more efficient, compact, lighter and cooler.
**600V CoolMOS™ C6 is replacement for 600V CoolMOS™ C3**
**650V CoolMOS™ C6 is replacement for 650V CoolMOS™ C3**
Summary of Features:
Easy control of switching behavior
Extremely low losses due to very low Figure of Merit (R DS(on)* Q g and E oss)
Very high commutation ruggedness
Easy to use
Better light load efficiency compared to C3
Outstanding reliability with proven CoolMOS™ quality combined with high body diode ruggedness
Better price performance in comparison to previous CoolMOS™ generations
More efficient, more compact, lighter and cooler
Benefits:
Improved power density
Improved reliability
General purpose part can be used in both soft and hard switching topologies
Better light load effciency
Improved effciency in hard switching applications
Improved ease-of-use
Reduces possible ringing due to pcb layout and package parasitic effects
Target Applications:
Consumer
Adapter
eMobility
PFC stages for server & telecom
SMPS
PC power
Solar
Lighting

Show

IPA60R600C6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Channels	1 Channel
Polarity	N-CH
Power Dissipation	28 W
Drain to Source Voltage (Vds)	600 V
Continuous Drain Current (Ids)	7.3A
Rise Time	9 nS
Input Capacitance (Ciss)	440pF @100V(Vds)
Fall Time	13 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	63 W
	Show
Size-Length	10.65 mm
Size-Width	4.85 mm
Size-Height	16.15 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
