Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 7 Pin |

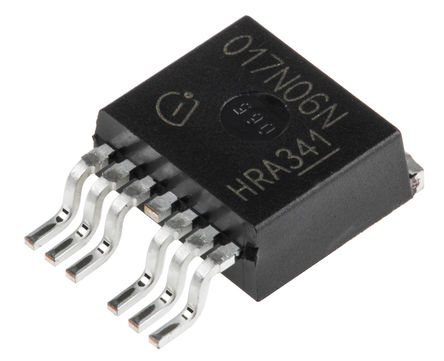

Case/Package | TO-263-7 |
Number of Positions | 7 Position |
Drain to Source Resistance (on) (Rds) | 1.3 mΩ |
Polarity | N-Channel |
Power Dissipation | 250 W |
Threshold Voltage | 3 V |
Drain to Source Voltage (Vds) | 60 V |
Rise Time | 80 ns |
Input Capacitance (Ciss) | 23000pF @30V(Vds) |
Fall Time | 24 ns |
Operating Temperature (Max) | 175 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 250W (Tc) |
Show | |
Size-Length | 10 mm |
Size-Width | 9.25 mm |
Size-Height | 4.4 mm |
Operating Temperature | -55℃ ~ 175℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/12/17 |
ECCN Code | EAR99 |
