IR2520DPBF - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC9950393
Category:
Power Management IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:

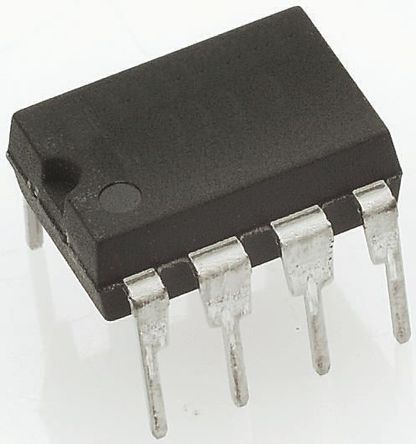

INFINEON IR2520DPBF Display Driver, Adaptive Ballast Control, 600V Half Bridge Driver, 11.4V to 15.4V, DIP-8
Stock Locations:
Availability:
693 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IR2520DPBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Frequency	34kHz ~ 86kHz
Supply Voltage (DC)	11.4V (min)
Power Rating	1 W
Number of Outputs	2 Output
Output Voltage	625.3 V
Output Current	10 mA
Supply Current	10 mA
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	1000 mW
Rise Time	150 ns
Fall Time	75 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	11.4V ~ 15.4V
Supply Voltage (Max)	15.4 V
Supply Voltage (Min)	11.4 V
	Show
Size-Length	10.92 mm
Size-Width	7.11 mm
Size-Height	4.94 mm
Operating Temperature	-25℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
