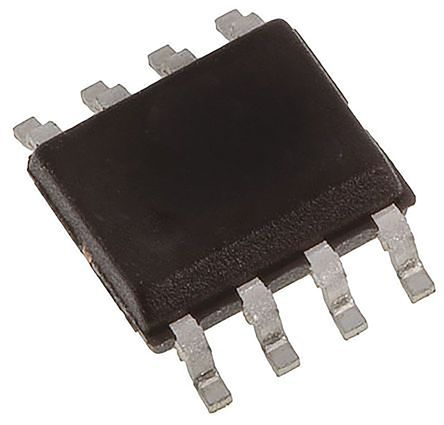

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- IRF7329TRPBF Series 12 V 9.2 A 17 mOhm SMT Hexfet Power Mosfet - SOIC-8
IRF7329TRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Drain to Source Resistance (on) (Rds) | 17 mΩ |
| Polarity | Dual P-Channel |
| Power Dissipation | 2 W |
| Threshold Voltage | 0.9 V |
| Drain to Source Voltage (Vds) | 12 V |
| Breakdown Voltage (Drain to Source) | 12 V |
| Continuous Drain Current (Ids) | 9.2A |
| Rise Time | 8.6 ns |
| Input Capacitance (Ciss) | 3450pF @10V(Vds) |
| Input Power (Max) | 2 W |
| Fall Time | 260 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 2 W |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
