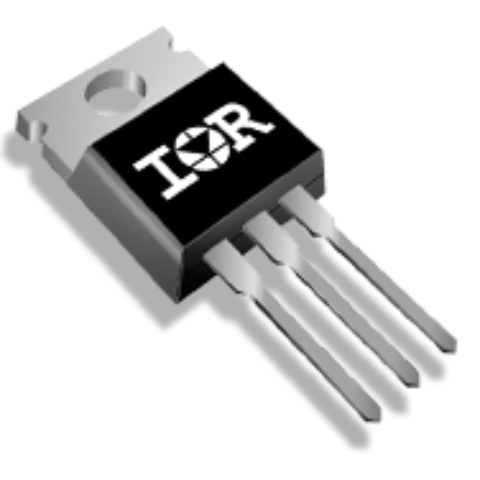

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IRFB260N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220
Voltage Rating (DC)	200 V
Current Rating	56.0 A
Polarity	N-Channel
Power Dissipation	380 W
Part Family	IRFB260N
Drain to Source Voltage (Vds)	200 V
Breakdown Voltage (Drain to Source)	200 V
Continuous Drain Current (Ids)	56.0 A
Rise Time	64 ns
Input Capacitance (Ciss)	4220pF @25V(Vds)
Fall Time	50 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	380000 mW
	Show
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
