Description

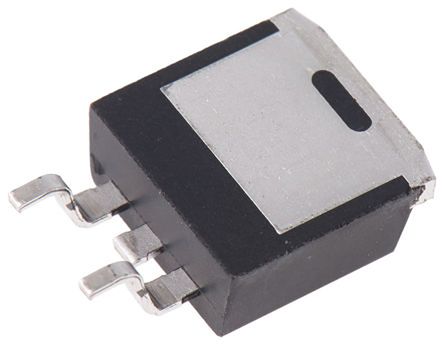

The IRL640SPBF is a third generation N-channel enhancement-mode Power MOSFET comes with the best combination of fast switching, ruggedized device design and low ON-resistance. The package is surface-mount and capable of accommodating die size up to HEX-4. It provides the highest power capability and the lowest possible ON-resistance in any existing surface-mount package. This package is suitable for high current applications because of its low internal connection resistance and can dissipate up to 2W in a typical surface-mount application.
Dynamic dV/dt rating
Repetitive avalanche rated
Logic-level gate drive
RDS (ON) Specified at VGS = 4 and 5V
Surface-mount
Halogen-free

Show

IRL640SPBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	180 mΩ
Polarity	N-Channel
Power Dissipation	125 W
Threshold Voltage	2 V
Drain to Source Voltage (Vds)	200 V
Continuous Drain Current (Ids)	17.0 A
Rise Time	83 ns
Input Capacitance (Ciss)	1800pF @25V(Vds)
Input Power (Max)	3.1 W
Fall Time	52 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3.1 W
	Show
Size-Length	10.67 mm
Size-Width	9.65 mm
Size-Height	4.83 mm
Product Lifecycle Status	Active
Packaging	Tube
Minimum Packing Quantity	2000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
