Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 4 Pin |

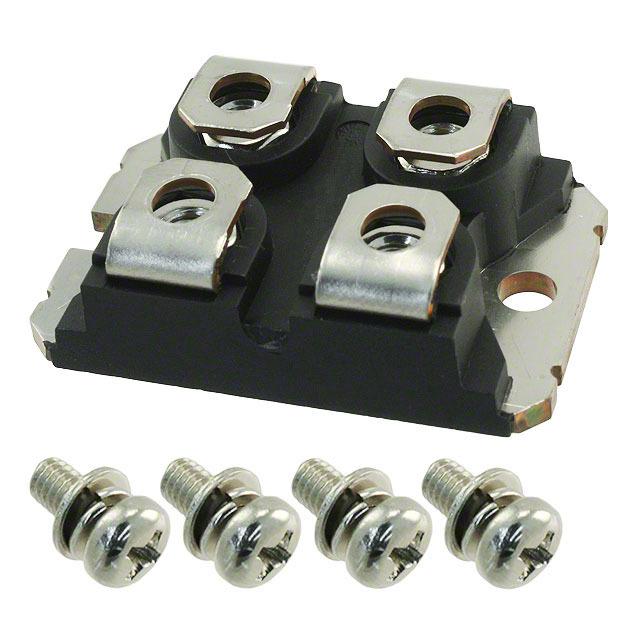

Case/Package | SOT-227-4 |
Number of Channels | 1 Channel |
Drain to Source Resistance (on) (Rds) | 250 mΩ |
Polarity | N-CH |
Power Dissipation | 890 W |
Drain to Source Voltage (Vds) | 1000 V |
Breakdown Voltage (Drain to Source) | 1000 V |
Continuous Drain Current (Ids) | 38A |
Rise Time | 28 ns |
Input Capacitance (Ciss) | 7200pF @25V(Vds) |
Input Power (Max) | 890 W |
Fall Time | 15 ns |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 890W (Tc) |
Show | |
Size-Length | 38.23 mm |
Size-Width | 25.42 mm |
Size-Height | 9.6 mm |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Not Recommended for New Designs |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
