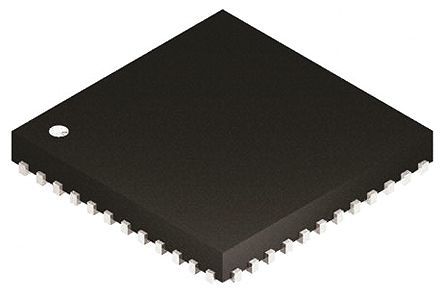

Image is for your reference only,please check specifications for details

L6208Q - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC44555675
Category:
Motor Driver
Package:
QFN-48
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS L6208Q Motor Driver, DMOS, 8V to 52V supply, 52V/2.5A/2Outputs, QFN-48
Stock Locations:
Availability:
1,357 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 45.9

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L6208Q is a DMOS fully integrated Stepper Motor Driver with non-dissipative overcurrent protection, realized in BCD multipower technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. The device includes all the circuitry needed to drive a two-phase bipolar stepper motor including: a dual DMOS full bridge, the constant OFF time PWM current controller that performs the chopping regulation and the phase sequence generator that generates the stepping sequence. It features a non-dissipative overcurrent protection on the high-side power MOSFETs and thermal shutdown.
Non-dissipative overcurrent protection
Dual independent constant tOFF PWM current controllers
Fast/slow decay mode selection
Fast decay quasi-synchronous rectification
Decoding logic for stepper motor full and half step drive
Cross conduction protection
Thermal shutdown
Under-voltage lockout
Integrated fast free-wheeling diodes
5.6A Output peak current (2.8A RMS)
0.3R at Tj=25°C Typical RDS(ON)
Up to 100kHz operating frequency

Show

L6208Q Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	QFN-48
Supply Voltage (DC)	8.00V (min)
Number of Outputs	2 Output
Output Voltage	52 V
Output Current	2.5 A
Number of Positions	48 Position
Switching Frequency	100 kHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8V ~ 52V
Supply Voltage (Max)	52 V
Supply Voltage (Min)	8 V
	Show
Size-Length	7.15 mm
Size-Width	7.15 mm
Size-Height	0.95 mm
Operating Temperature	-25℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
