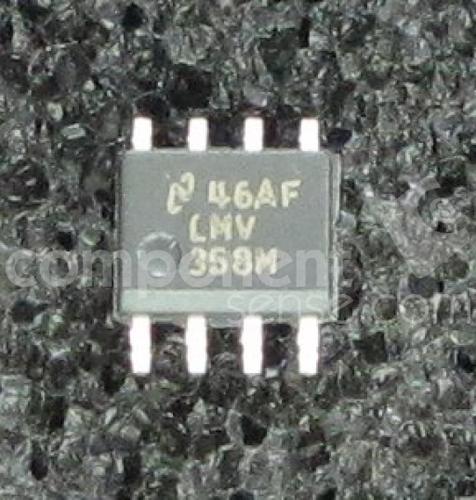

Image is for your reference only,please check specifications for details

LMV358M - TI
Manufacturer:
TI
ManyChip's Part#:
MC9580900
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LMV358M Operational Amplifier, Dual, 2 Amplifier, 1MHz, 1V/µs, 2.7V to 5.5V, SOIC, 8Pins
Stock Locations:
Availability:
9,133 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.64

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMV358M is a general purpose low voltage Operational Amplifier which has rail-to-rail output swing capability and the input common-mode voltage range includes ground. This operational amplifier exhibits excellent speed to power ratio, achieving 1MHz of bandwidth and 1V/µs slew rate with low supply current. The op-amp is built with Texas Instruments"s advanced submicron silicon-gate BiCMOS process and has bipolar input and output stages for improved noise performance and higher output current drive.
No crossover distortion
Rail-to-rail output swing
Low supply current
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

LMV358M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	5.00 V
Output Current	60.0 mA
Supply Current	210 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	50 dB
Input Offset Drift	5.00 µV/K
Bandwidth	1 MHz
Slew Rate	1.00 V/μs
Gain Bandwidth Product	1 MHz
Input Offset Voltage	1.7 mV
Input Bias Current	15 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1 MHz
Minimum CMRR Range	50 dB
Supply Voltage	2.7V ~ 5.5V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
