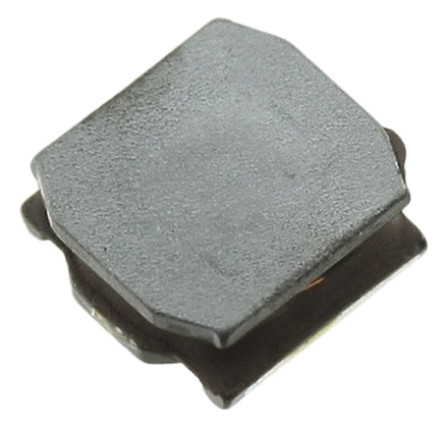

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 3.3µH Shielded Wirewound Inductor 1.77A 65mOhm Nonstandard
LQH44PN3R3MP0L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | 1515 |
| Current Rating | 1.77 A |
| Capacitance Tolerance | ±20 % |
| Inductance | 3.3 µH |
| Self Resonant Frequency | 50 MHz |
| Part Family | LQH |
| Resistance | 65.0 mΩ |
| Resonant Frequency | 50.0 MHz |
| Inductance Tolerance | ±20 % |
| Test Frequency | 1 MHz |
| DC Resistance (DCR) | 65 mΩ |
| Current Rating (DC) | 2.1 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.065 Ω |
| Show | |
| Size-Length | 4 mm |
| Size-Width | 4 mm |
| Size-Height | 1.65 mm |
| Weight | 0.07 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 1000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
