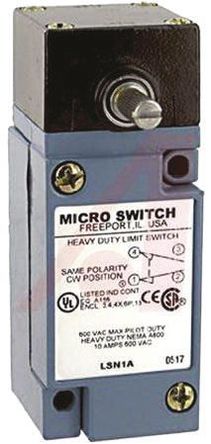

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- MICRO SWITCH™ heavy-duty limit switches include boss-and-socket head design for secure head-to-body retention, unique all-metal drive train for consistent operating characteristics. Self-lifting pressure plate terminals save wiring time, easily identified grounding terminal (inside) for compliance with OSHA and other regulatory agency standards. One piece flat gasket does not contact terminal pins to reduce chances of fluid migration. Front mounting and interchangeability of single- and double-pole switches, plug-in and non plug-in with one another and with other switch brands. Twin shaft seals for an extra measure of protection, inner O-ring seal, outer Buna-N seal (all FC available,) FC shaft and diaphragm seals on side rotary switches. Rugged corrosion-resistant zinc head and body are phosphate treated and epoxy finished. Exclusive teller tab assures proper torque (when it cannot be moved the lever is tight enough to prevent slippage). Domestic and international conduit taps available.
LSN1A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Plug In |
| Actuator Type | Side Rotary |
| Current Rating | 10.0 A |
| Contacts Type | SPDT-NO |
| Contact Current Rating | 10.0 A |
| Current Rating (Max) | 10A @24VDC |
| Operating Temperature (Max) | 121 ℃ |
| Operating Temperature (Min) | -1 ℃ |
| Voltage Rating | 600 VAC |
| Voltage Rating (DC Max) | 24 V |
| Show | |
| Size-Length | 106.78 mm |
| Size-Width | 1.62 in |
| Size-Height | 106.78 mm |
| Operating Temperature | -1℃ ~ 121℃ |
| Housing Material | Zinc Die-Cast |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536509040 |
| ECCN Code | EAR99 |
