LT1013DIP TI - Operational Amplifiers(General Purpose)

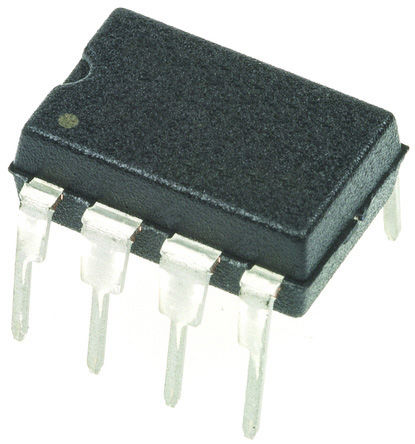

Image is for your reference only,please check specifications for details

LT1013DIP - TI
Manufacturer:
TI
ManyChip's Part#:
MC8542714
Category:
Operational Amplifiers(General Purpose)
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LT1013DIP – Двойной операционный усилитель, 2 усилителя, частота работы 1 МГц, напряжение питания 0.4 В/мукс, диапазон напряжений от ±2В до ±18В, форм-фактор DIP, количество контактов – 8.
Stock Locations:
Availability:
72 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.57

Updated at 31/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

LT1013DIP – двойной операционный усилитель высокого качества, обладающий высоким коэффициентом усиления, низким током питания, низким шумом и низким температурным коэффициентом смещения напряжений. Устройство LT1013 может работать от одного источника питания 5В; диапазон входных напряжений включает землю, а выходное напряжение также может колебаться на несколько милливольт от земли. Усложнения в передаче сигнала исключены. LT1013 может работать как с двойным питанием ±15В, так и с одним источником 5В.
Типичное напряжение шума в низком диапазоне составляет 0.55 мкВ;
Типичный ток шума составляет 0.07 пА/Hz;
Типичное смещение напряжений составляет 0.5 мкВ/°C;
Типичный коэффициент независимости усиления составляет 114 дБ.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Current	350 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	97 dB
Input Offset Drift	500 nV/K
Bandwidth	1 MHz
Slew Rate	400 mV/μs
Gain Bandwidth Product	1 MHz
Input Offset Voltage	200 µV
Input Bias Current	15 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1 MHz
Minimum CMRR Range	97 dB
Supply Voltage (Max)	44 V
Supply Voltage (Min)	4 V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
