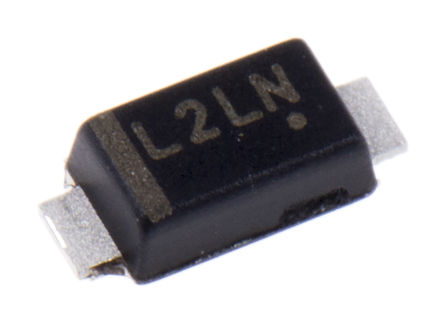

MBR120LSFT3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123-2
Voltage Rating (DC)	20.0 V
Current Rating	1.00 A
Halogen Free Status	Halogen Free
Output Current	≤1.00 A
Forward Voltage	0.26 V
Polarity	Standard
Forward Current	1 A
Max Forward Surge Current (Ifsm)	50 A
Maximum Forward Voltage (Max)	450mV @1A
Forward Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	2.9 mm
Size-Width	1.65 mm
Size-Height	0.9 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
