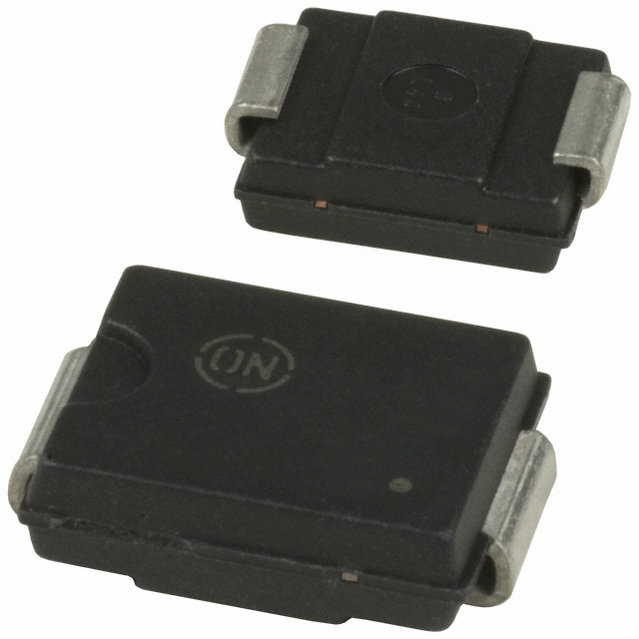

Image is for your reference only,please check specifications for details
Updated at 01/07/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Diode Schottky 200V 4A Surface Mount SMC
MBRS4201T3 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMC |
| Voltage Rating (DC) | 200 V |
| Current Rating | 4.00 A |
| Output Current | ≤4.00 A |
| Forward Voltage | 860mV @4A |
| Polarity | Standard |
| Reverse recovery time | 35 ns |
| Forward Current (Max) | 4 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Length | 6.86 mm |
| Size-Width | 5.84 mm |
| Size-Height | 2.13 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
