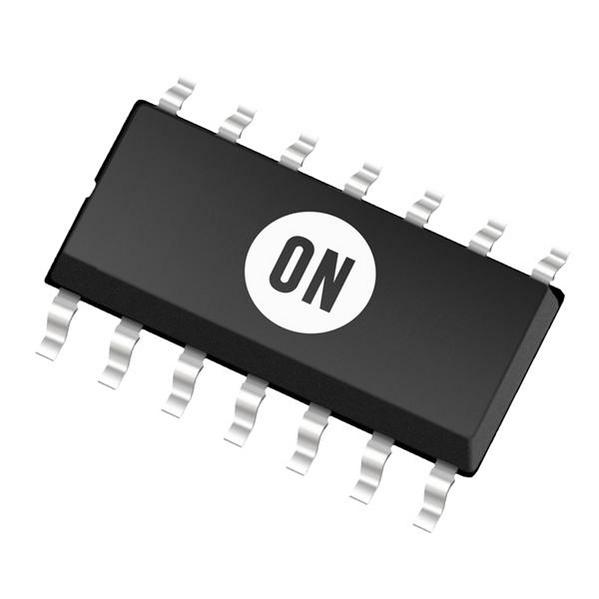

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Single Supply, High Slew Rate, Low Input Offset Voltage Operational Amplifiers
The MC33272/74 series of monolithic operational amplifiers are quality fabricated with innovative Bipolar design concepts. This dual and quad operational amplifier series incorporates Bipolar inputs along with a patented Zip−R−Trim element for input offset voltage reduction. The MC33272/74 series of operational amplifiers exhibits low input offset voltage and high gain bandwidth product.
Features
•Input Offset Voltage Trimmed to 100 V (Typ)
•Low Input Bias Current: 300 nA
•Low Input Offset Current: 3.0 nA
•High Input Resistance: 16 M
•Low Noise: 18 nV/ Hz √ @ 1.0 kHz
•High Gain Bandwidth Product: 24 MHz @ 100 kHz
•High Slew Rate: 10 V/s
•Power Bandwidth: 160 kHz
•Excellent Frequency Stability
•Unity Gain Stable: w/Capacitance Loads to 500 pF
•Large Output Voltage Swing: +14.1 V/ −14.6 V
•Low Total Harmonic Distortion: 0.003%
•Power Supply Drain Current: 2.15 mA per Amplifier
•Single or Split Supply Operation: +3.0 V to +36 V or ±1.5 V to ±18 V
•ESD Diodes Provide Added Protection to the Inputs
•Pb−Free Packages are Available
•NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes

Show

MC33274AD Specifications
