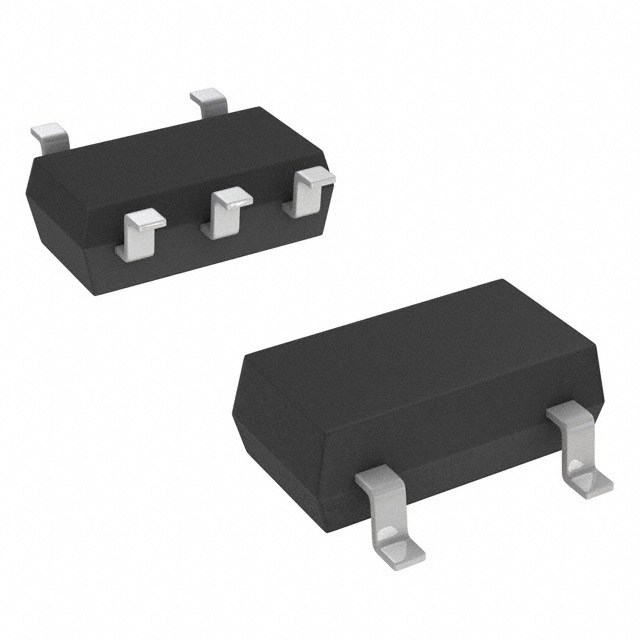

Image is for your reference only,please check specifications for details

MIC5233YM5 TR - Micrel
Manufacturer:
Micrel
ManyChip's Part#:
MC155718222
Category:
Voltage Regulator
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
MICREL SEMICONDUCTOR MIC5233YM5 TR LDO Voltage Regulator, Adjustable, 2.3V to 36V in, 270mV drop, 1.24V to 20V/0.1A out, SOT-23-5
Stock Locations:
Availability:
207 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.5

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MIC5233YM5 TR is a high input voltage low IQ µCap LDO Regulator with high input voltage and ultra-low ground current. This combination of high input voltage and low ground current makes the regulator ideal for multi-cell Li-Ion battery systems. A µCap LDO design, the regulator is stable with either ceramic or tantalum output capacitors. It only requires a 2.2µF capacitor for stability. It features an enable input, thermal shutdown, current limit, reverse battery protection and reverse leakage protection.
High output accuracy of ±2.0% over-temperature
µCap - Stable with ceramic or tantalum capacitors
Excellent line and load regulation specifications
Zero off-mode current
Reverse battery protection
Reverse leakage protection
Thermal shutdown and current limit protection
ESD sensitive device, take proper precaution while handling the device.

Show

MIC5233YM5 TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Input Voltage (DC)	36.0V (max)
Output Voltage	1.24V ~ 20V
Output Current	100 mA
Number of Positions	5 Position
voltage rating	270 mV
Input Voltage (Max)	36 V
Input Voltage (Min)	2.3 V
Output Voltage (Max)	20 V
Output Voltage (Min)	1.24 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.3V ~ 36V
	Show
Operating Temperature	-40℃ ~ 125℃
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
